Medium Voltage Electrical Rescue panel c/w detector

SKU
RERB-MV3
£1,096.00(exc. VAT)

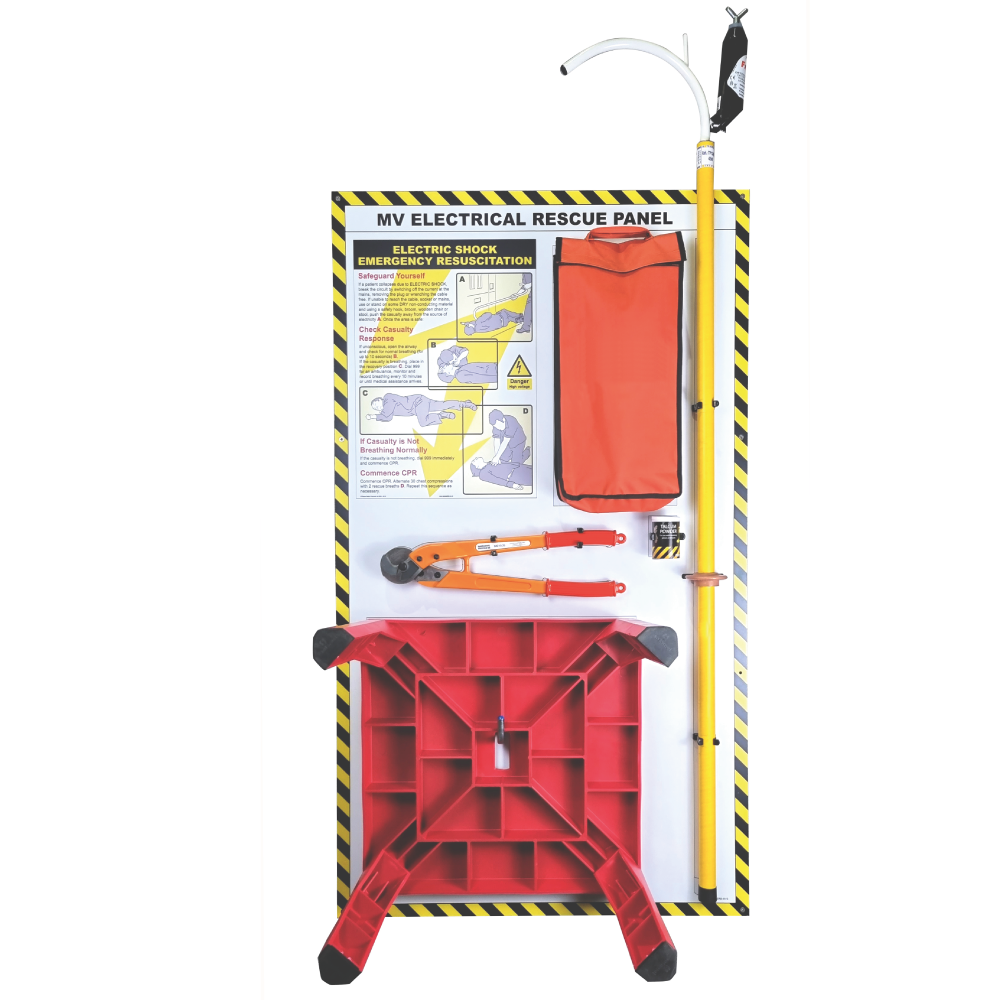

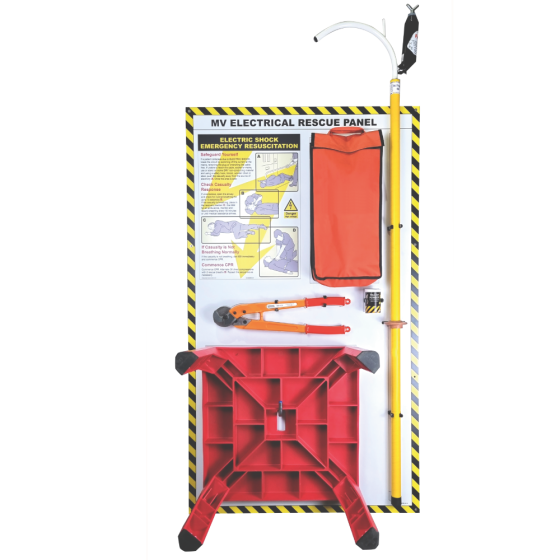

Medium Voltage Electrical Rescue Panel

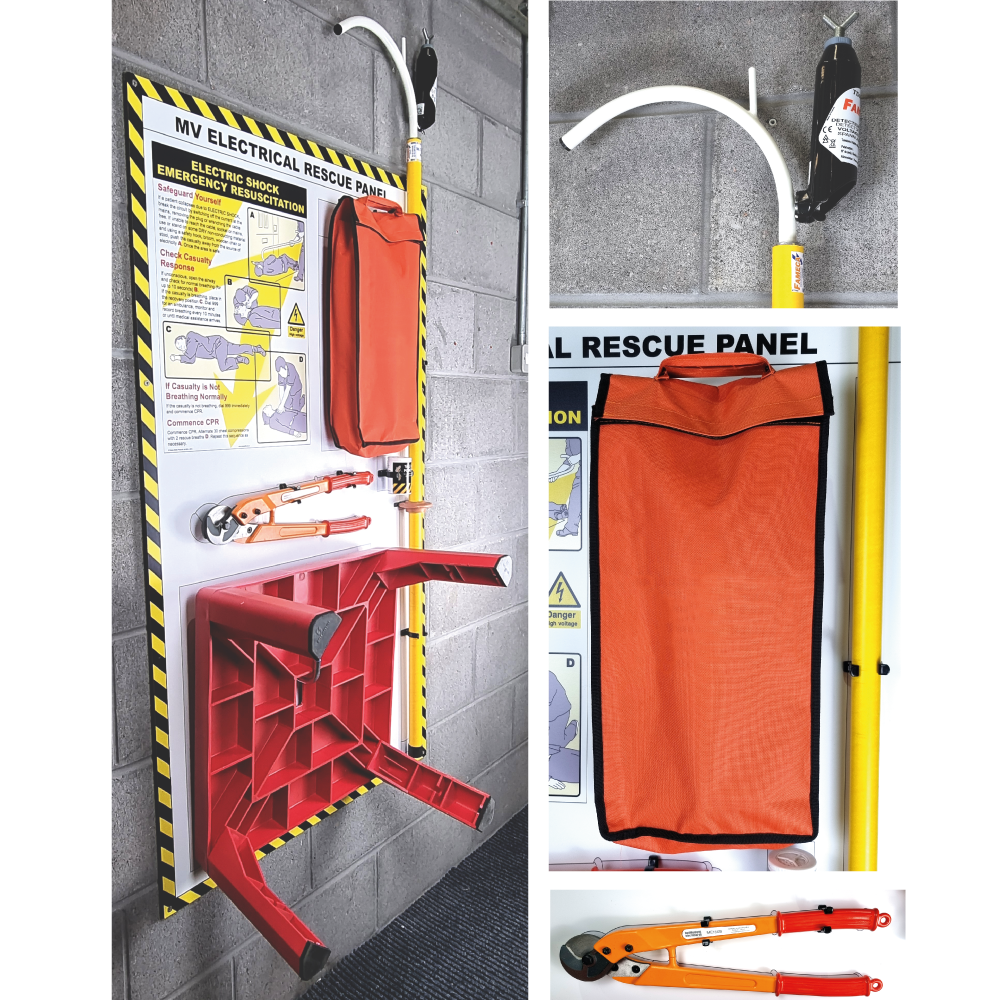

This panel is a perfect solution to providing instant access to insulated equipment to allow a rescuer to make an intervention in a safe manner and prevent risk of death or injury. The panel can be mounted in a typical industrial substation or switch room.

This design contains equipment rated to 25,000V for safe Medium Voltage rescue:

  • Popular 45kV rescue hook on 1.5m insulated glassfibre pole
  • 125-45kV voltage detector incorprated into rescue hook
  • Insulating platform rated to 45kV
  • Suitably rated Insulating gloves and talc for easier use
  • Cable cutters with 30mm diameter cable cutting capacity

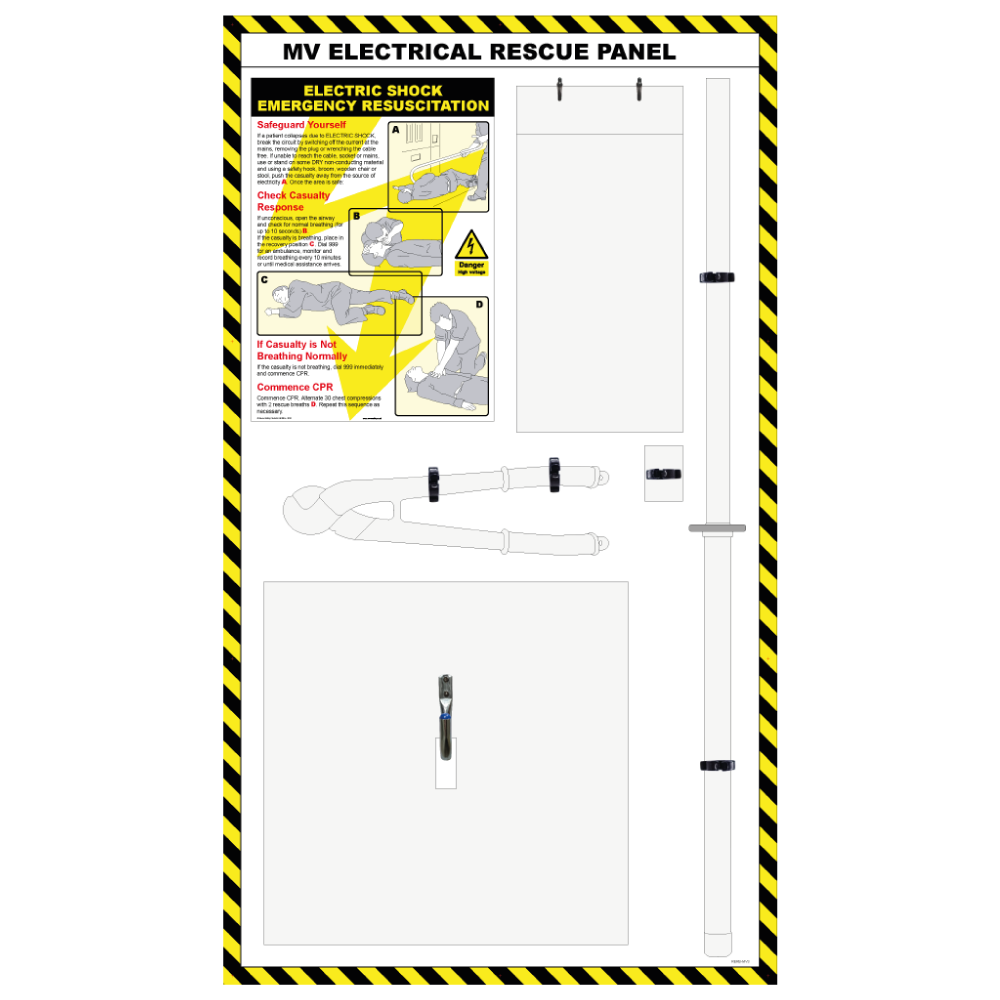

  • Panel size 1400 x 800mm on a shadow board to quickly alert if contents are missing

The panel contents are popular products to allow safe intervention in the event of an electrical incident where the victim may still be attached to live lines. This will allow the safe safe rescue to fully insulate the rescuer in pulling the casualty away from danger using a rescue hook. The resuscitation instructions will them help any rescuer give time critical CPR prior to Emergency Services arriving.

Contents:

  • 45kV rescue hook – 1.5m long pole and 1.65m overall length
  • Hook design allows fitting of TDPESEC voltage detector
    • Field voltages on contact with range of 127V to 45kV
    • AC mains frequency: 50 and 60 Hz
    • Temp operating range: -25°Cto +55°C depending on battery type
    • Automatic wake up when voltage is detected
    • Self-test for all functions and the voltage level of battery
    • Indication of live voltage - Buzzer and Red Light
  • Class 3 insulating gloves (26.5kV rated) – size 10 – plain latex gloves
  • Small non-scented talc dispenser to ease putting the gloves on – overcomes resistance and moisture
  • Plastic glove storage box
  • 45kV insulated platform to give good clearance and avoid grounding
  • Insulated cable cutters with 30mm jaws rated to 25kV
  • Resuscitation Instructions for emergency first aid in event of electric shock
