No.1 Lockout Tagout Specialist

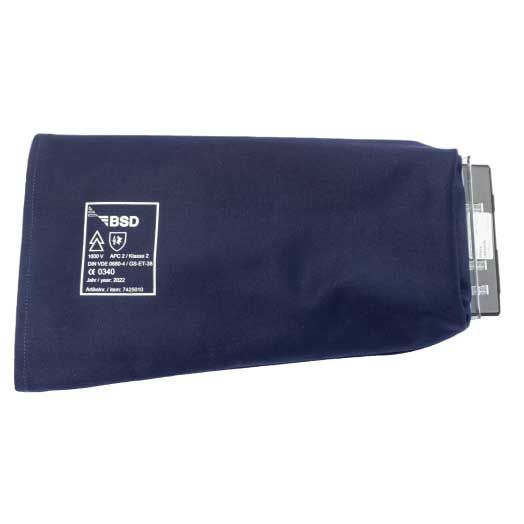

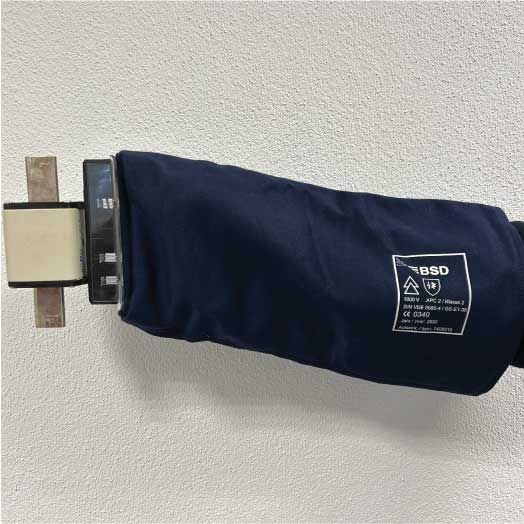

Fuse Removal Sleeve (Arc Rated) or Adapter

SKU
ELE-HBCF-1
£99.50(exc. VAT)

For the Safe Removal of Fuse VSE 0680/4



For inserting and changing of low-voltage high-performance fuses for nominal voltages up to 1000 V AC on rather 1500 V DC PE according to Regulation (EU) 2016/425 VDE 0680-4 Test specification GS-ET-38

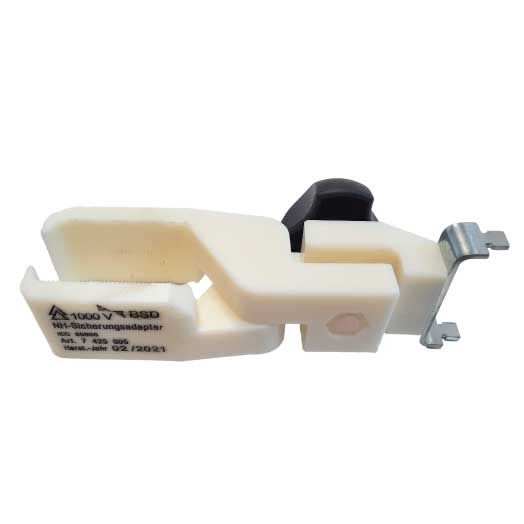

Adapter for NH fuse handle

The NH - fuse adapter is designed according to the requirements and tests of the IEC 60900 standard and thus for working under voltage up to 1000 V AC / 1500 DC approved Scope of application:

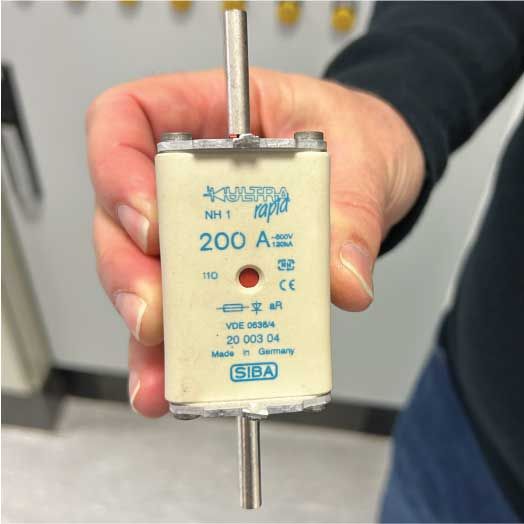

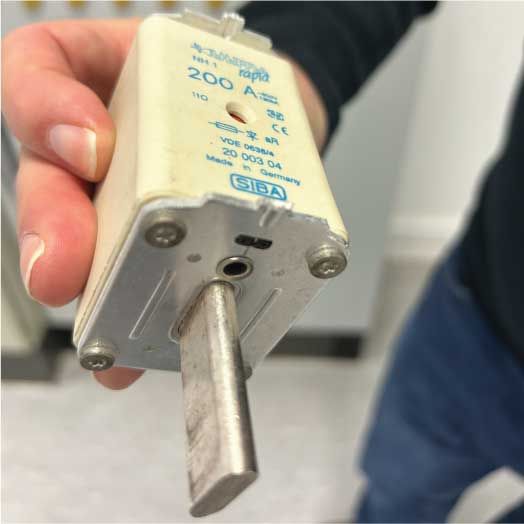

  •  It is the aid for NH fuse links with defective handle tabs can be safely removed Properties:

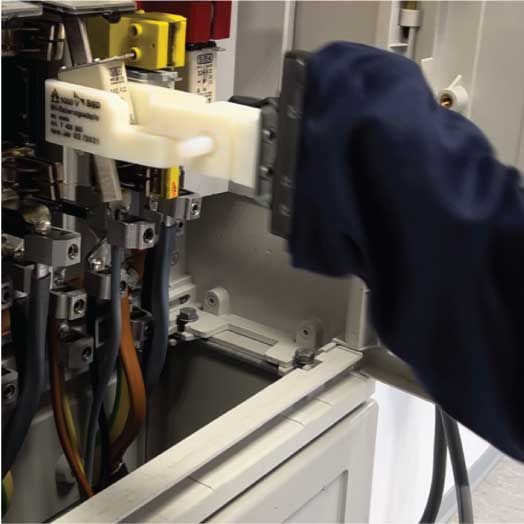

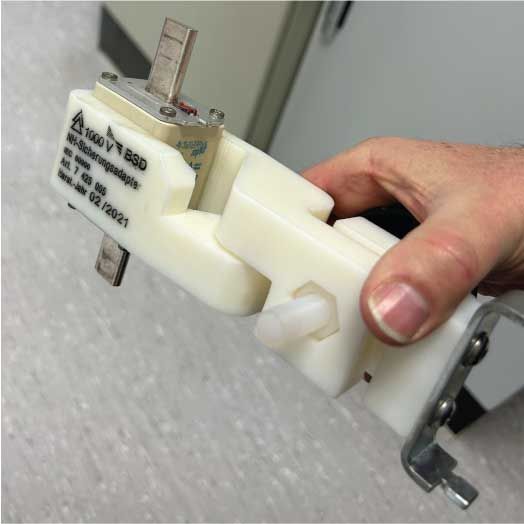

  •  The NH fuse adapter creates a force and positive connection with the NH fuse link. After fixing the adapter to the defective NH fuse link, it is possible to combine this with a conventional NH fuse handle.
  •  By simple and quick adjustment the adapter can be to different sizes of NH-fuse links can be adjusted.
  •  suitable for: NH 0, NH 1, NH2 and NH3,
  •  Clamping range: 26 - 55 mm Fuse width
