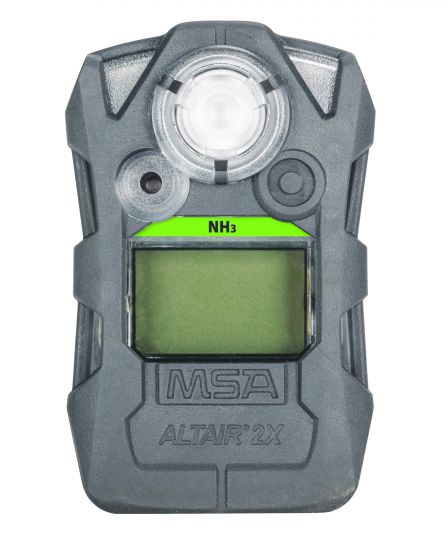

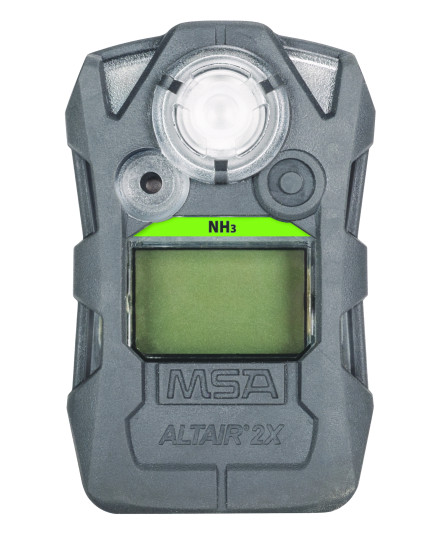

ALTAIR 2X, NH3, Gray - 10154079

The ALTAIR 2X Gas Detector

The ALTAIR 2X Gas Detector is the first one or two gas detector that incorporatesindustry-leading XCell Sensor Technology to deliver unparalleled performance while drastically minimizing total cost of ownership, increasing durability and delivering enhanced worker safety, compliance and traceability.

The ALTAIR 2X is also the first portable gas detector to introduce revolutionary XCell Pulse Technology. Based on proven science and advanced patented sensorcapabilities, the ALTAIR 2XP Detector delivers the world’s first stand-alone bump test. This allows a daily bump test to be performed without the need for calibration accessories or specific calibration gas.

Lower Total Cost of ownership

MSA’s industry leading technology combined with product durability means that the ALTAIR 2X Gas Detector provides a lower total cost of ownership than competitive instruments and will pay for itself quickly.

Reduced Costs and Expense

• XCell Sensor response and recovery time reduces the gas consumption for calibration and gas bump tests (where applicable).
• The ALTAIR 2XP with XCell Pulse Technology reduces the need for specific calibration gas and bump test accessories to provide providing significant savings!
• The ALTAIR 2XT Two-Tox eliminates the need for a second instrument in several applications.

Increased Productivity

• Skip the gas line! – The stand-alone bump test on the ALTAIR 2XP means that you will be spending more time doing the job and less time waiting in line or conducting bump tests. Spending less time at the bump station means less down time and more time producing!
• Faster bump tests, easy compliance and product reliability means you can get to work faster and safer!

Built Tough

Like all MSA detectors, ALTAIR 2X is built for durability and designed for the work that is being completed.

• withstands extreme impacts with rugged polycarbonate housing and passes 7,62 m (25 foot) drop test
• IP 67-rated ALTAIR 2X is both dust tight and water tight
• Minimal Rf interference
• full three-year warranty supports the entire instrument, including the sensors

XCell® Pulse Technology

With MSA's patented XCell Pulse Technology, we have created a simple and inexpensive approach to bump testing. Years of scientific research, patented sensor interrogation technology and proprietary sensor response methodologies have delivered the world’s first gas detector with a stand-alone bump test. Simply put; the use of calibration accessories or bottled calibration gas is not required for bump testing the ALTAIR 2XP Gas Detector.

How doesit work? When the detector is turned on, it automatically begins an electronic pulse check that activates the sensor catalyst and electrolyte interaction and makes minor corrections against prior calibration values. next the user completes a flow check by exhaling toward the sensor inlet. An oxygen detector embedded in the sensor, that is only active during the pulse and flow check, detects the drop in oxygen content of exhaled breath. If both of these checks pass, the detector passes the bump test

Technical Specifications

• Size 89 x 54 x 25 mm (LxwxD without clip)
• Weight 113 g w/ clip
• Housing Rugged rubberized armor
• Ingress protection IP67
• Drop test 7,6 m
• Handling one-handed, one-button operation
• bump test indicators Pass: Green LED flash & checkmark fail or expiration: Red LED flash only
• Audible alarm 95 dB at 30 cm
• Visual alarm Ultra-bright LEDs
• Vibrating alarm Standard
• DisplayLarge-character monochrome LCD
• backlight 10s backlight w/ adjustable timeout battery
• Replaceable lithium battery
• extended temp. range –20 °C to +50 °C
• extreme range –40 °C to +60 °C
• Data log 2X/2XP: > 150 hrs 2XT: > 100 hrs event log 75 events
• Standard Warranty Chassis & electronics: 3 years Cl2 & nh3 sensors: 2 years All other sensors: 3 years Does not cover consumable parts
